$27.69

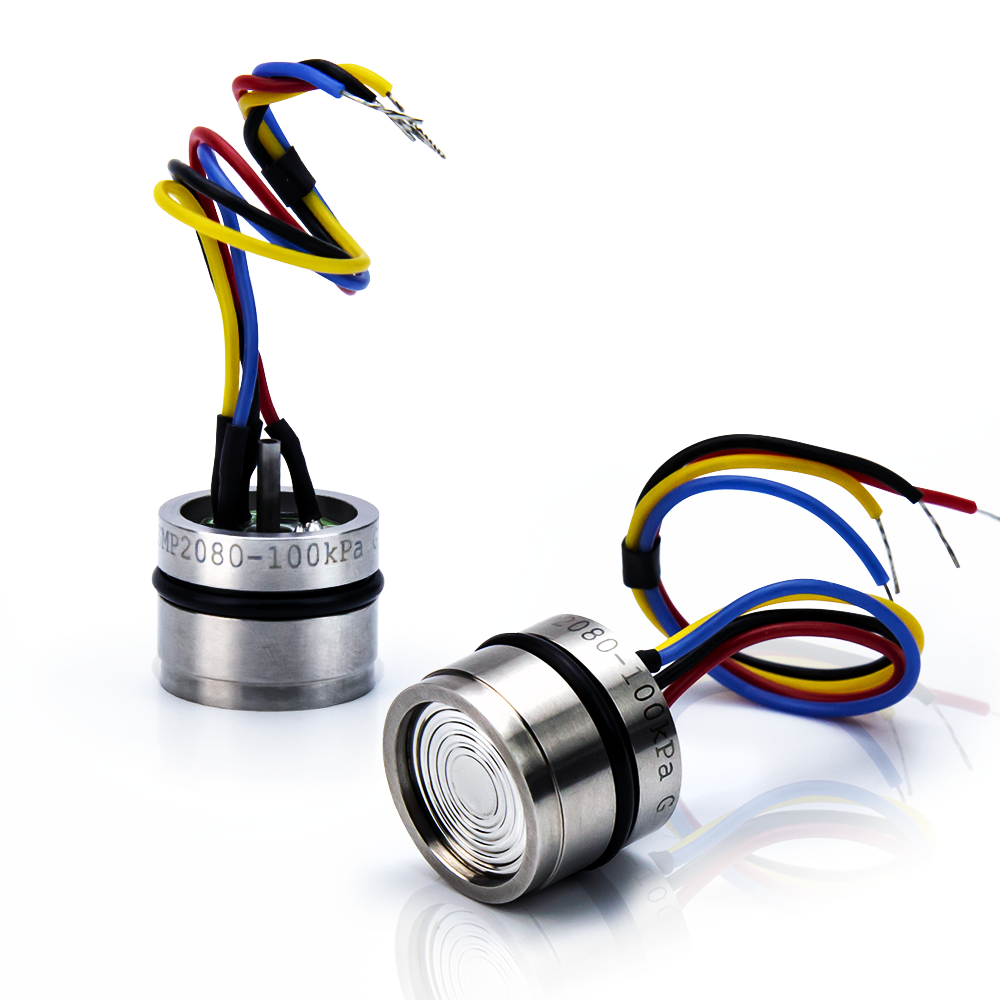

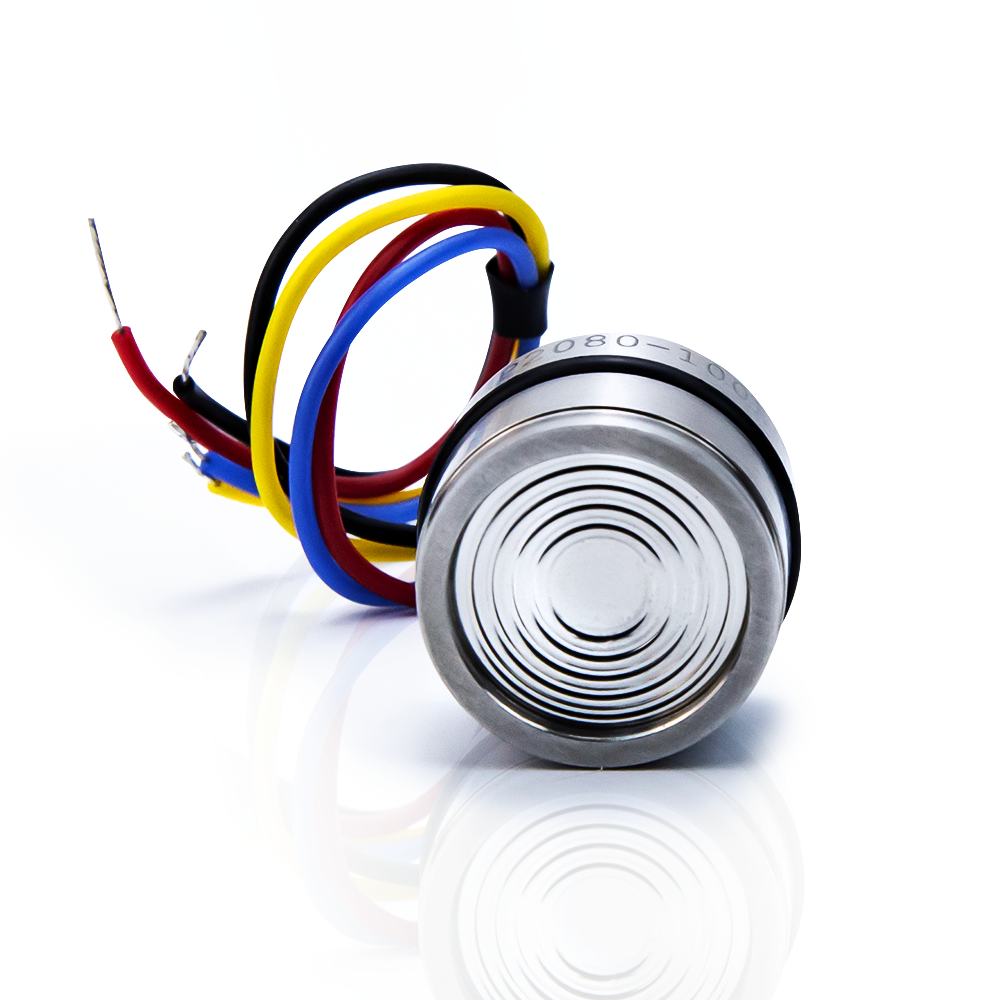

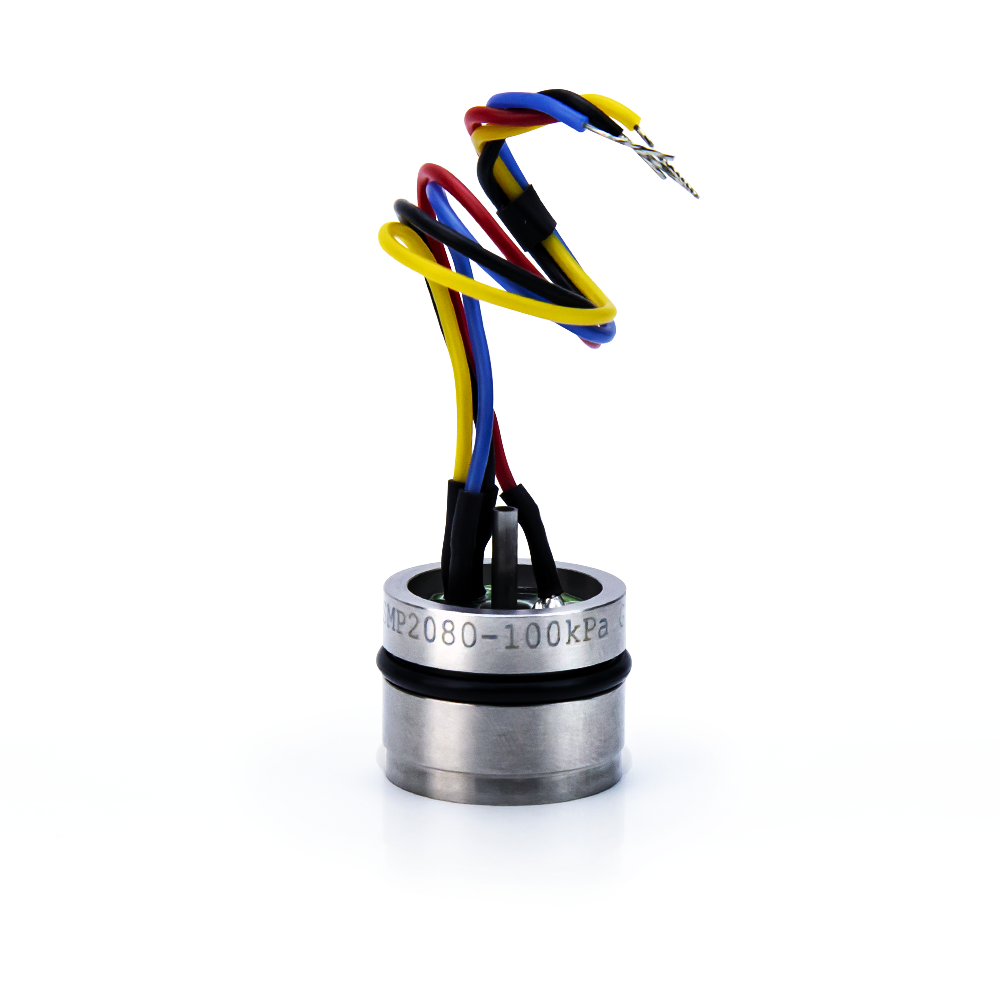

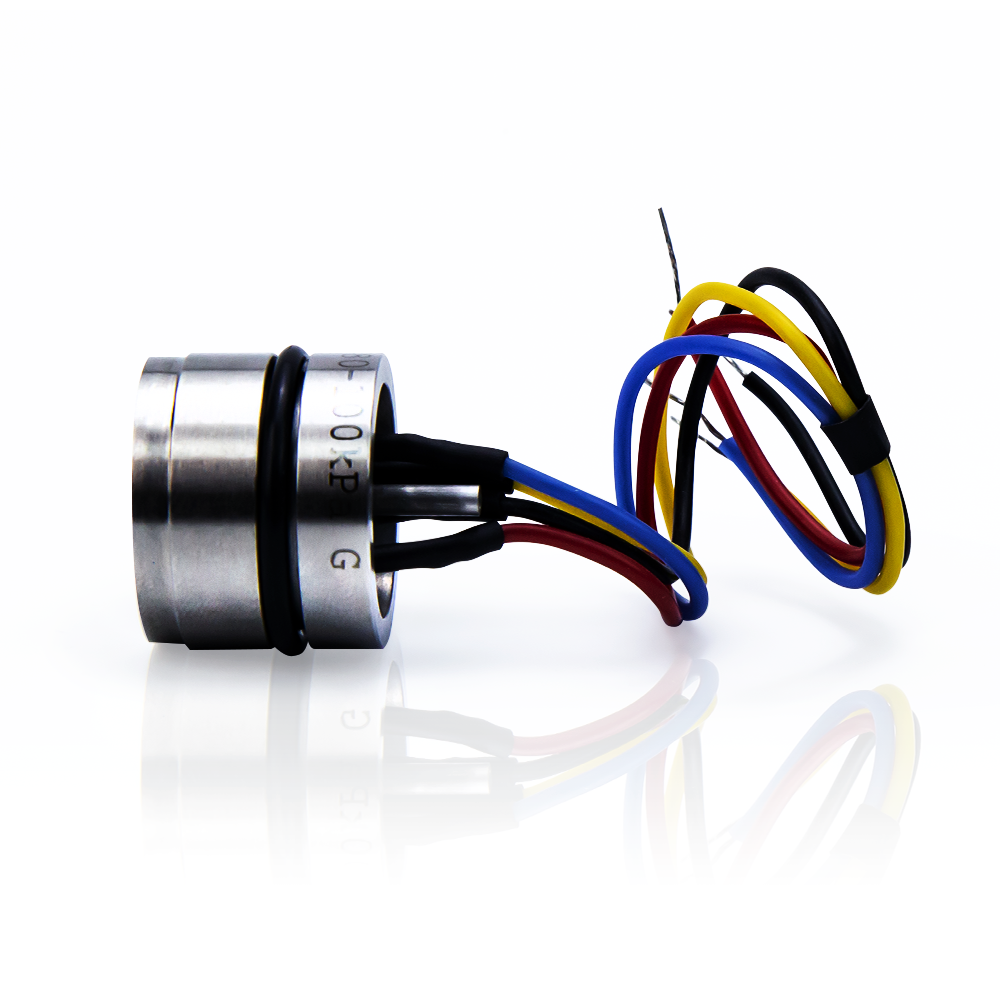

Structure condition
Diaphragm material: SS 316L
Housing material: SS 316L
Pin Wire: Kovar/100mm silicone rubber wire
Back pressure: tube SS 316L (gauge and negative pressure only)
Seal ring: nitrile rubber
Electrical Condition
Power supply: ≤2.0 mA DC
Impedance input: 2.5kΩ ~ 5 kΩ
Impedance output: 2.5kΩ ~ 5 kΩ
Response: (10%～90%)：<1ms
Insulation resistance: 100MΩ,100V DC
Over pressure: 2 times FS, ( 0C/0B/0A/02 5times FS)
Environment Condition
Media applicability: fluid which has no corrosion on stainless steel and nitrile rubber
Shock: No change at 10gRMS，(20～2000)Hz
Impact: 100g，11ms
Position: Deviate 90° from any direction, zero change≤±0.05%FS
Basic Condition
Environment temperature:（25±1）℃
Humidity:（50%±10%）RH
Atmospheric pressure: (86~106) KPa
Power supply:（1.5±0.0015）mA DC

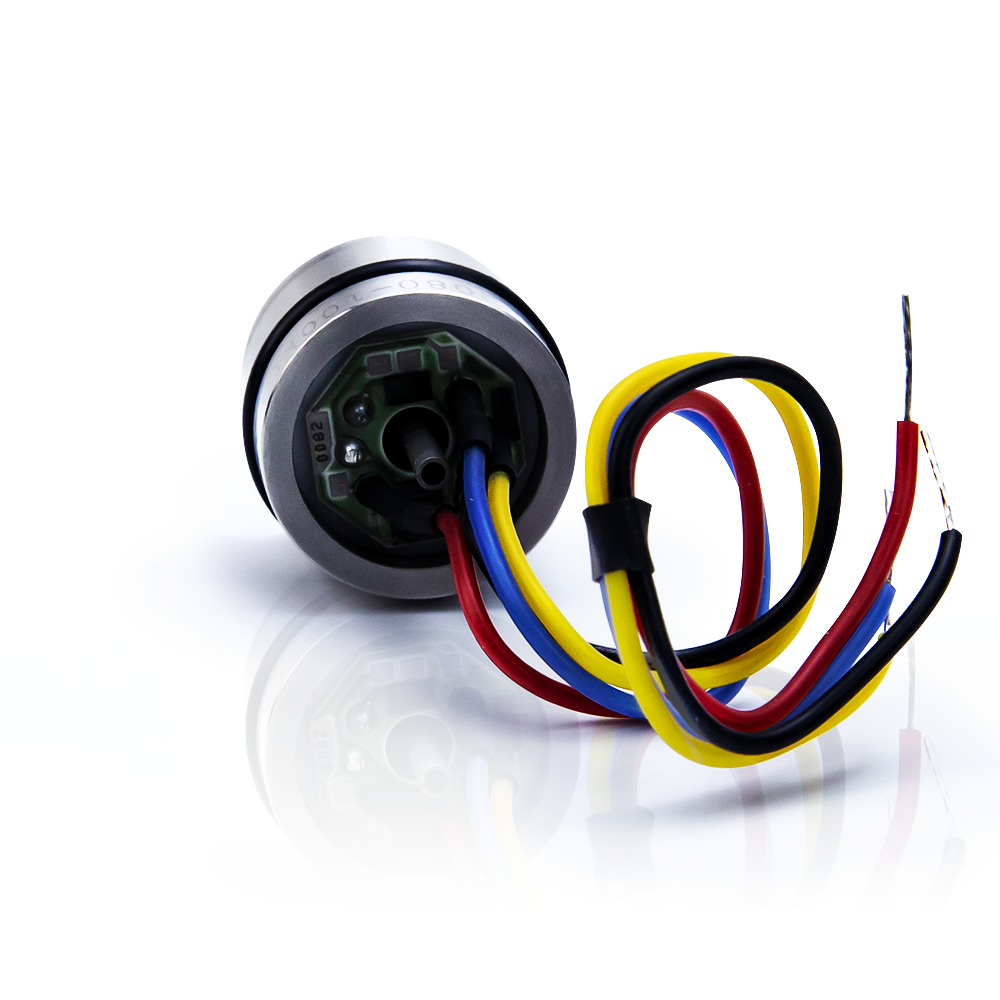

| Pin | Electrical connection | Wire color |
| 4 | +OUT | Red |
| 10 | －OUT | Blue |
| 11 | －IN | Yellow |
| 12 | +IN | Black |
Description:
1. When installing O-ring or PTFE ring, keep PTFE ring installed in the side without pressure;
2. Screw cannot be lifted to the sensor housing;
3. The figure shows the installation of elastic ring with holes；
4. The picture shows the pressure transmitter suspension installation, and make sure there is a gap between the radial and axial of the sensor ring and the base to avoid pressure is transmitted to the sensor diaphragm.
