$52.30

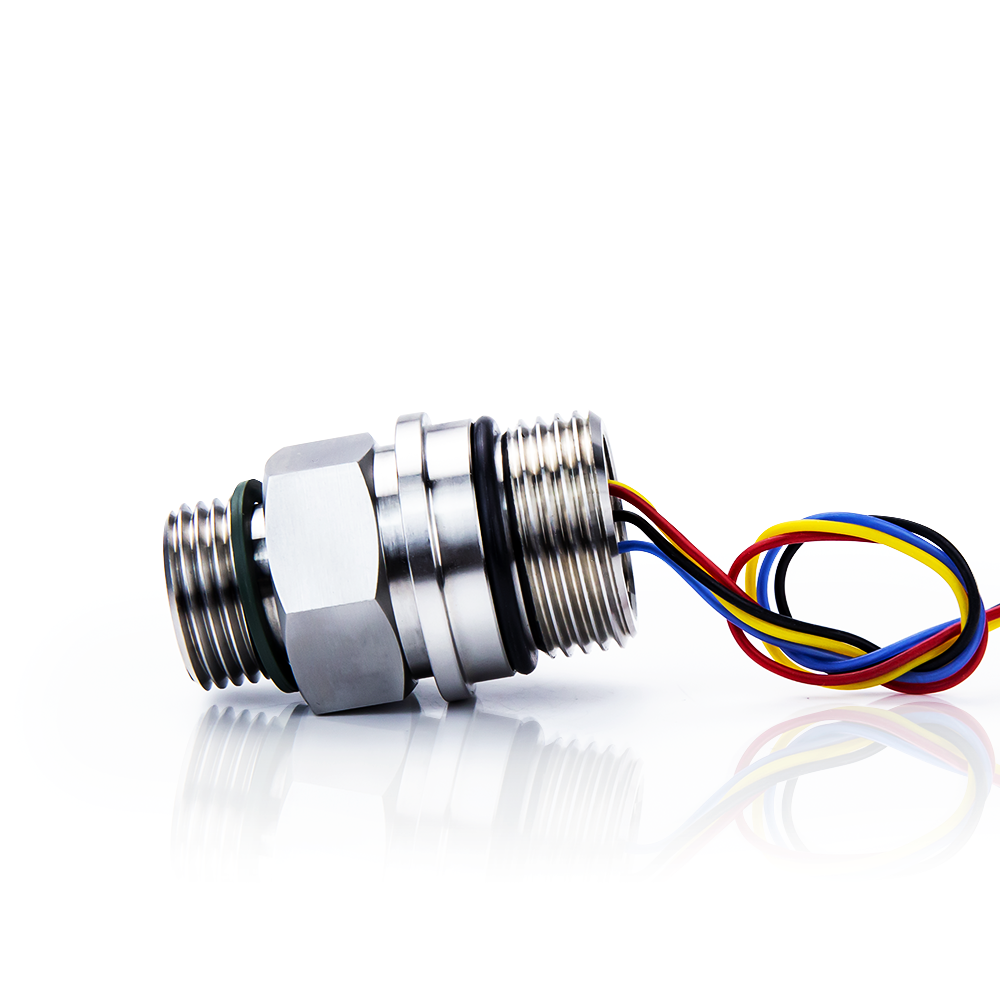

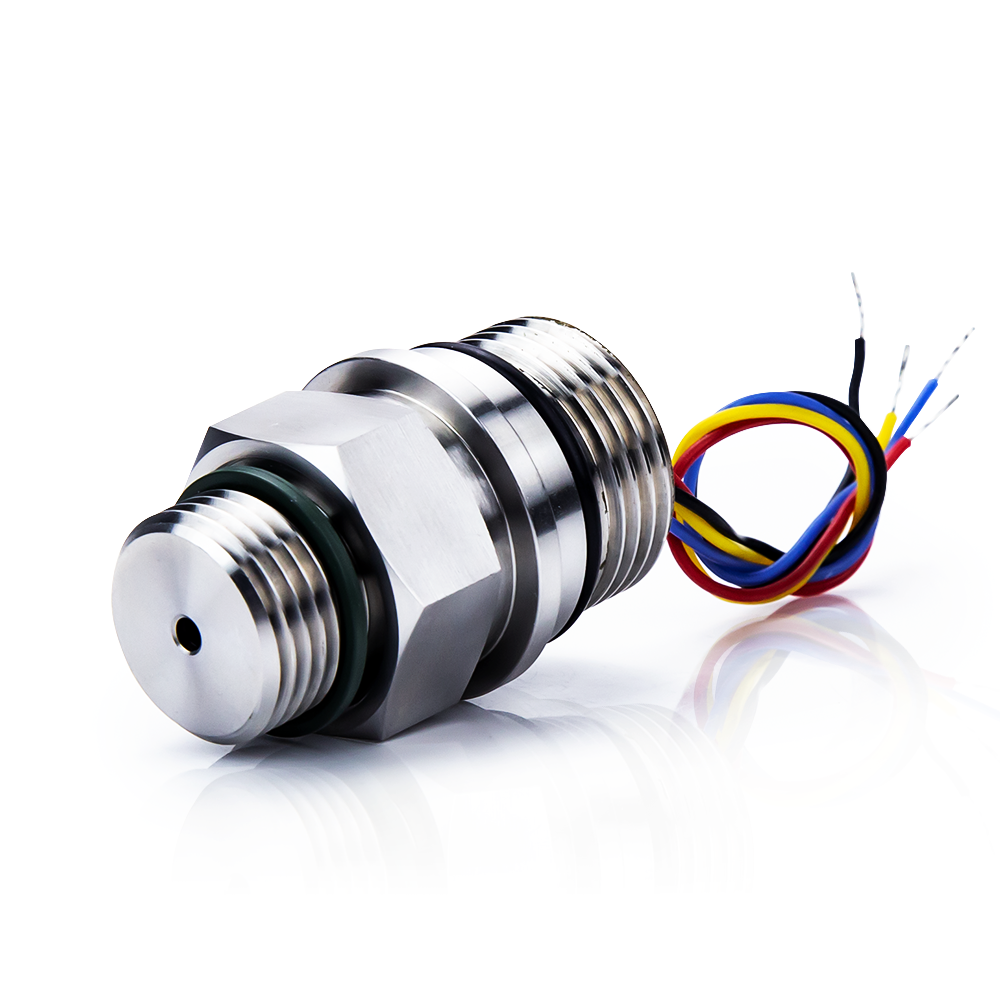

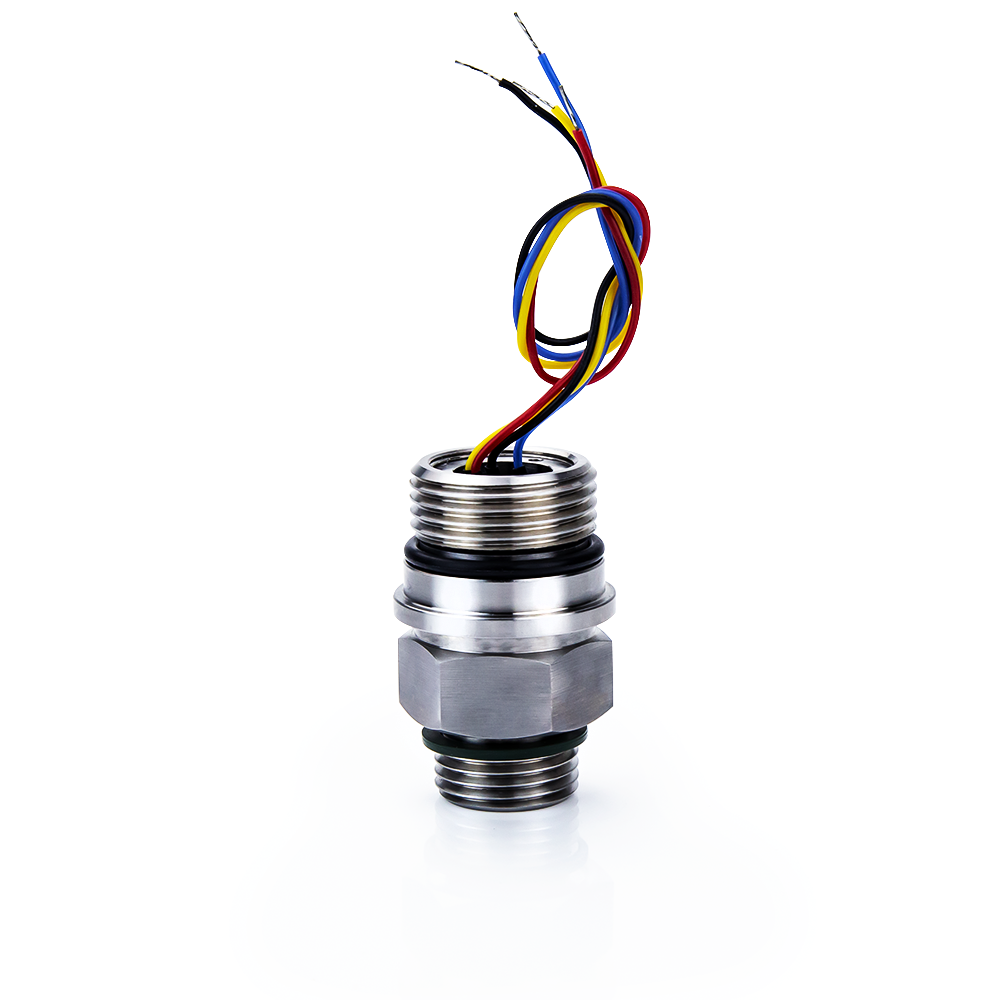

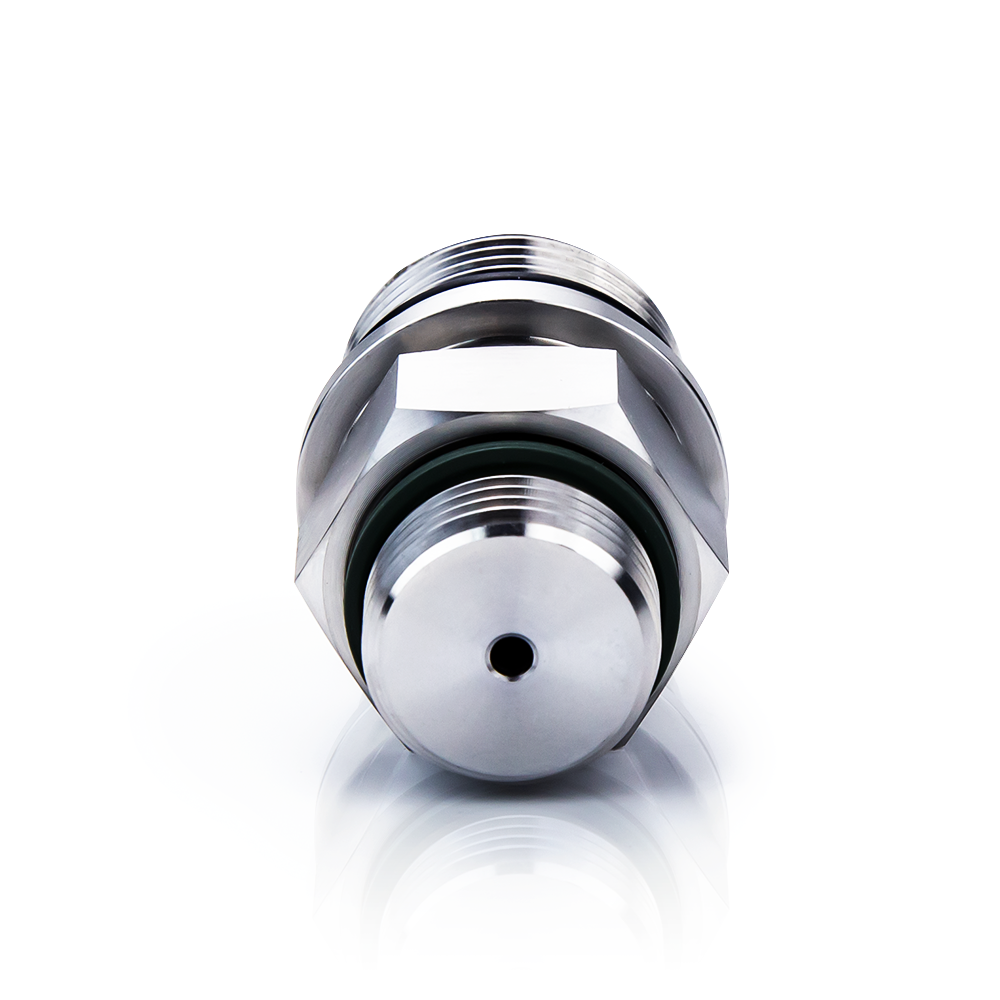

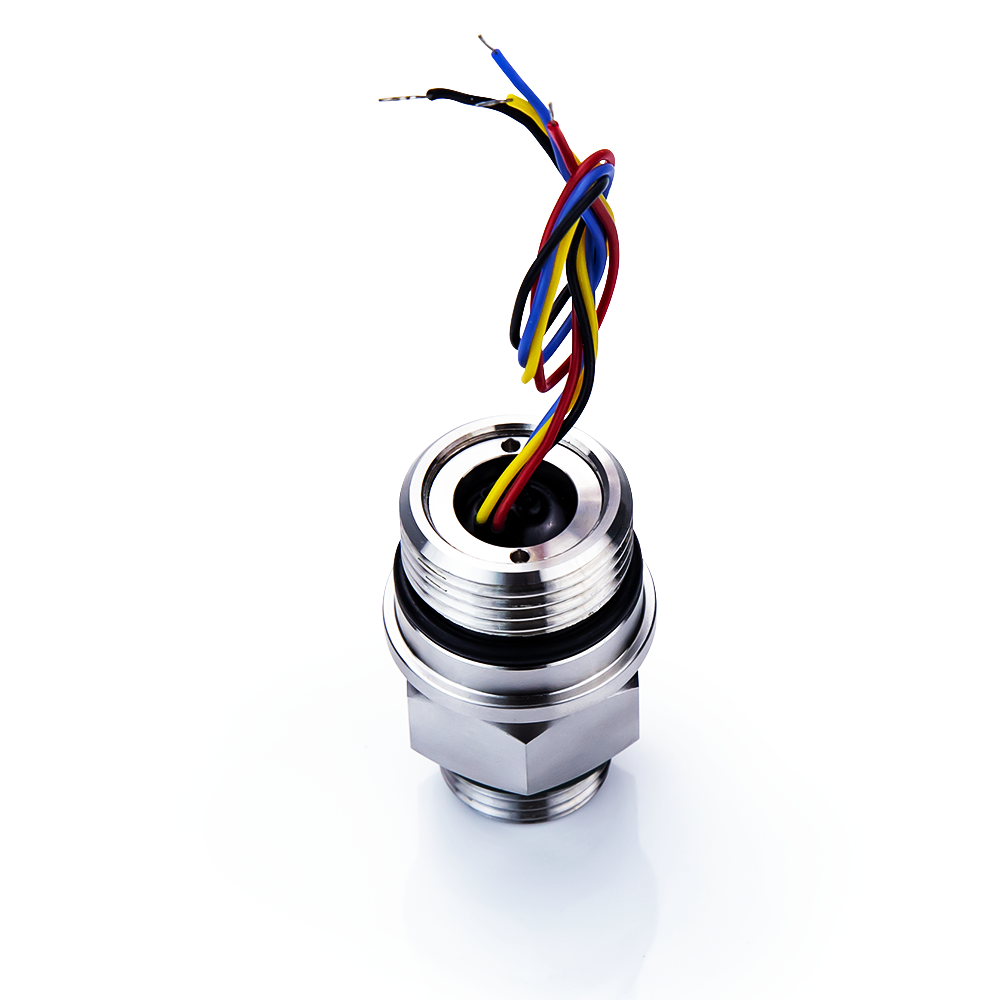

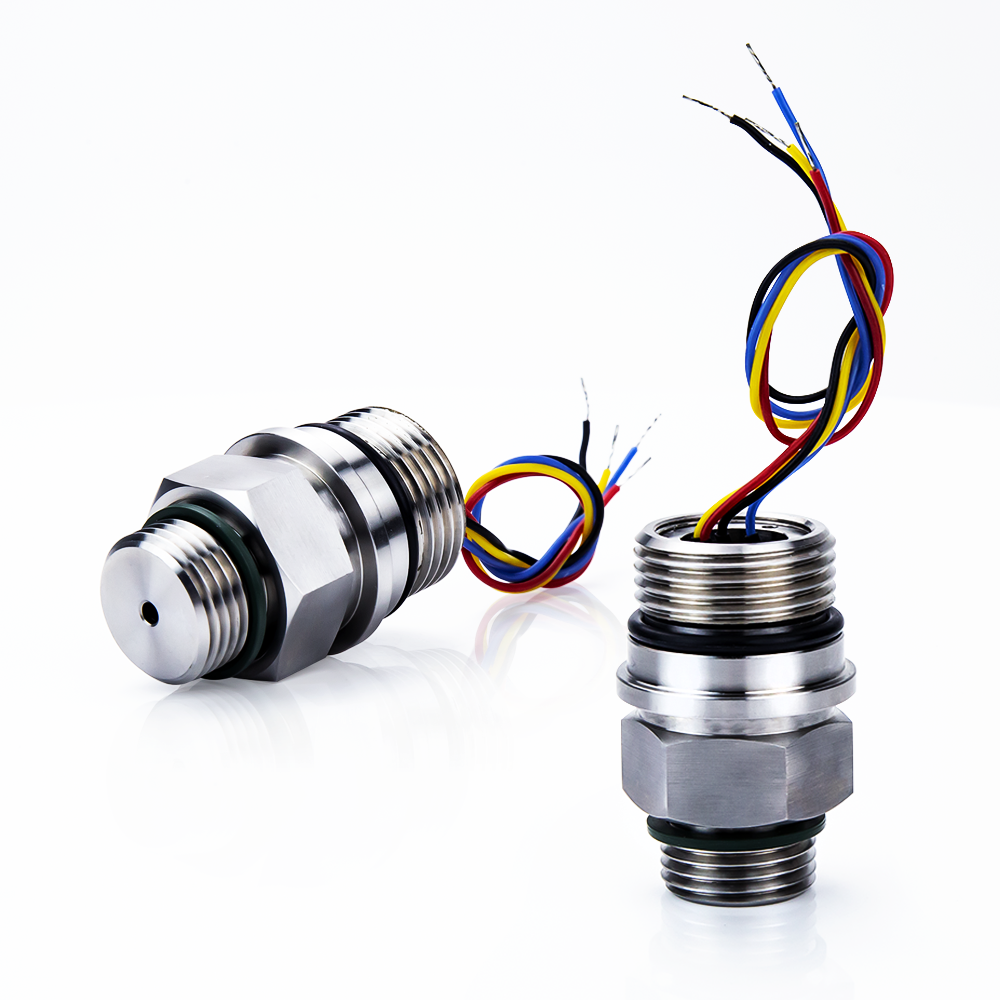

Structure condition
Diaphragm material: SS 316L
Housing material: SS 316L
Seal ring: nitrile rubber
Electrical Condition
Power supply: ≤2.0 mA DC
Impedance input: 2.5kΩ ~ 5 kΩ
Impedance output: 2.5kΩ ~ 5 kΩ
Response: (10%～90%):<1ms
Insulation resistance: 100MΩ,100V DC
Over pressure: 2 times FS, ( 0C/0B/0A/02 5times FS)
Environment Condition
Media applicability: fluid which has no corrosion on stainless steel and nitrile rubber
Shock: No change at 10gRMS，(20～2000)Hz
Impact: 100g，11ms
Position: Deviate 90° from any direction, zero change≤±0.05%FS
Basic Condition
Environment temperature:（25±1）℃
Humidity:（50%±10%）RH
Atmospheric pressure: (86~106) KPa
Power supply:（1.5±0.0015）mA DC
All tests are in accordance with relevant national standards, including GB / T2423-2008, GB / T8170-2008, GJB150.17A-2009, etc., and also comply with the Company’s “Pressure Sensor Enterprise Standards” provisions of the relevant content.
Parameters（@1.5 mA DC）
| Item | Min. | Typ. | Max. | Units |
| Linearity | ±0.2 | ±0.25 | %FS,BFSL | |
| Repeatability | ±0.05 | ±0.075 | %FS | |
| Hysteresis | ±0.05 | ±0.075 | %FS | |
| Zero output | ±2.0 | mV DC | ||
| FS output | 45 | 100 | mV DC | |
| Compensated temp. range | 0～70 | ℃ | ||
| Working temp. range | -40～125 | ℃ | ||
| Storage temp. range | -55～150 | ℃ | ||
| Zero temp. error | ±0.75 | ±1.0 | %FS @ 25℃ | |
| Full temp. error | ±0.75 | ±1.0 | %FS @ 25℃ | |
| Long term stability error | ±0.2 | %FS/year |
| Note：
1. The above performance indicators are tested under the benchmark conditions. 2. The temperature range for temperature drift test is the compensation temperature range. |
| Electrical connection | Wire color |
| +OUT | Red |
| －OUT | Blue |
| －IN | Yellow |
| +IN | Black |
Subscribe to our newsletter now
+86-19921910756
12th Floor, Santai Building, 137-139 Connaught Road Central, Hong Kong
Mail: info@xdbsensor.com
Copyright © xidibei.com all rights reserved.
| DC5V | DC12V | DC9~36(24)V | DC3.3V |
|---|---|---|---|
| 0.5~4.5V, 1~5V, 0.4-2.4V | 4-20mA, 0-10V, 0.5-4.5V 0-5V, 1-5V | 4-20mA, 0-10V, 0.5-4.5V 0-5V, 1-5V | 0.4~2.4V, I2C |
From a physical perspective, the potential difference that electronic components can achieve when working is limited by the supply voltage. If you try to generate an output signal greater than the supply voltage, it is like asking a container to hold more liquid than its capacity, which is physically impossible.
From the perspective of circuit principles, the supply voltage provides energy and working conditions for each component in the circuit. When trying to generate a signal higher than the supply voltage, the transistors, amplifiers and other components in the circuit cannot provide sufficient gain or energy conversion, and thus such an output cannot be achieved.
In addition, from the perspective of signal integrity and stability, an output signal that exceeds the supply voltage will cause signal distortion, increase noise, and may even damage components in the circuit, affecting the normal operation of the entire system.
