• Petroleum, chemical industry;
• Urban water supply, heating;
• Process control system;
• Hydraulic industry.

Structure condition
Diaphragm material: SS 316L
Housing material: SS 316L
Seal ring: nitrile rubber

Electrical Condition
Power supply: ≤2.0 mA DC
Impedance input: 2.5kΩ ~ 5 kΩ
Impedance output: 2.5kΩ ~ 5 kΩ
Response: (10%～90%):<1ms
Insulation resistance: 100MΩ,100V DC
Over pressure: 2 times FS, ( 0C/0B/0A/02 5times FS)

Environment Condition
Media applicability: fluid which has no corrosion on stainless steel and nitrile rubber
Shock: No change at 10gRMS，(20～2000)Hz
Impact: 100g，11ms
Position: Deviate 90° from any direction, zero change≤±0.05%FS

Basic Condition
Environment temperature:（25±1）℃
Humidity:（50%±10%）RH
Atmospheric pressure: (86~106) KPa
Power supply:（1.5±0.0015）mA DC

All tests are in accordance with relevant national standards, including GB / T2423-2008, GB / T8170-2008, GJB150.17A-2009, etc., and also comply with the Company’s “Pressure Sensor Enterprise Standards” provisions of the relevant content.

Parameters（@1.5 mA DC）

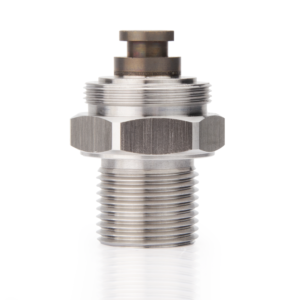

XDB102-7 series
